frame-relay上のOSPF(POINT_TO_MULTIPOINT)の構成・設定

Dynamips/Dynagenを使用して、frame-relay(OSPF POINT_TO_MULTIPOINT)を設定します。

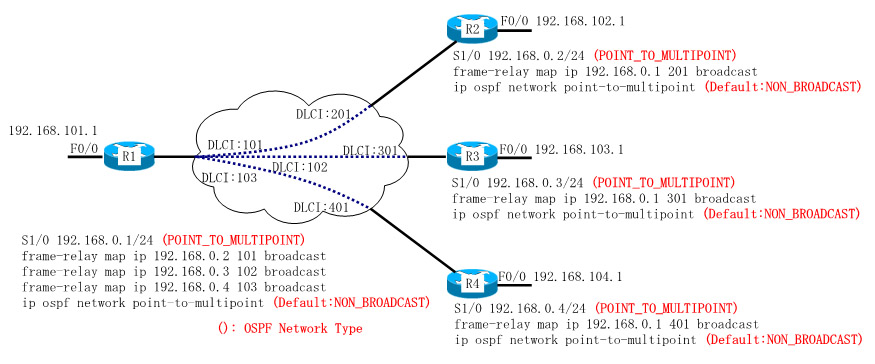

• Topology

  OSPF Network Type - POINT_TO_MULTIPOINT


• Configuration Settings Overview


  1. OSPF Network Type
     POINT_TO_MULTIPOINT






• Dynagen Config File / Router Config

  1. Dynagen .net file

  2. R1

  3. R2

  4. R3

  5. R4


• show command

  R1, R2, R3, R4 :
    show ip route
    show ip ospf neighbor
    show frame-relay map
    show ip ospf interface
    show ip protocols

  1.  R1

  2.  R2

  3.  R3

  4.  R4
