Cisco BGP Overview No.2

Cisco BGP Overview Configuration No.2

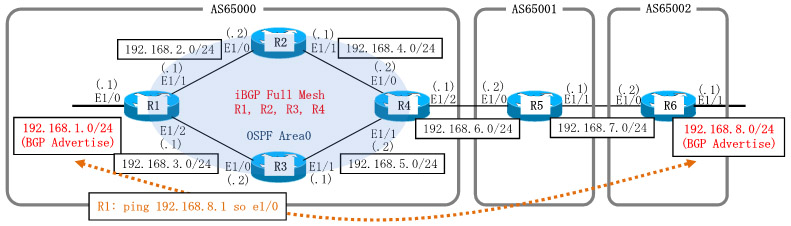

• Topology




• Configuration Settings Overview


  1. BGP Configuration

     iBGP Full Mesh : R1, R2, R3, R4
     BGP Advertised Route : R1 - 192.168.1.0/24
                            R6 - 192.168.8.0/24
     iBGP next-hop-self : R4


• Dynagen Config File / Router Config

  (1)  Dynagen .net file

  (2)  R1

  (3)  R2

  (4)  R3

  (5)  R4

  (6)  R5

  (7)  R6


• show command

  sh bgp ipv4 unicast summary
  sh bgp ipv4 unicast
  sh ip route

  (1)  R1

  (2)  R2

  (3)  R6
